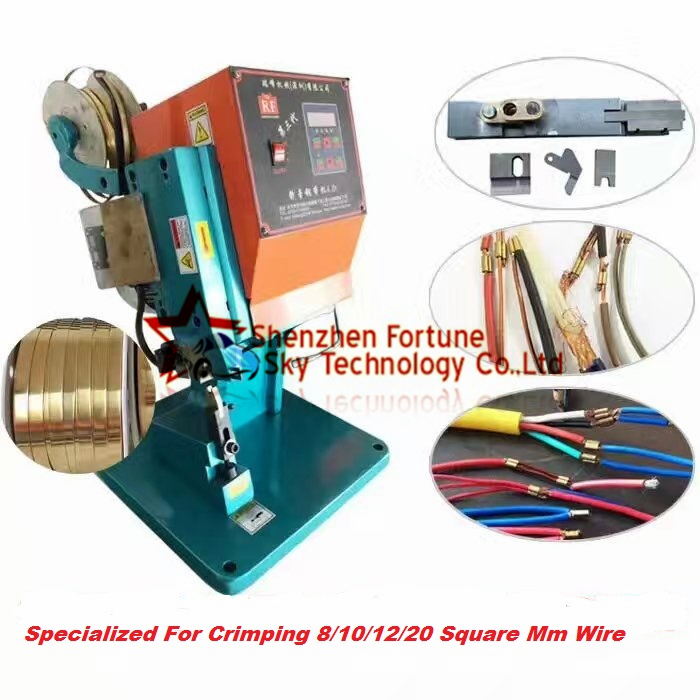

1.8T Wire Splice Band Splicing Machine
This 1.8T wire splice band splicing machine is designed for wire riveting processing, crimping, and wire connection. It uses continuous copper strip terminal materials to shape molding after being cut off, pressing quickly at one time without waste and saving cost.
Technical Specifications
Overview
High-Efficiency Wire Splicing Solution
The 1.8T Wire Splice Band Splicing Machine is a specialized solution for wire processing and crimping, designed to replace traditional soldering methods. By utilizing continuous copper strip terminals, it eliminates common soldering faults like cold welding and air pollution while significantly reducing material waste. This machine is engineered for high-volume production environments, offering a user-friendly design that ensures stable quality and strong resistance to tension after riveting.
Technical Performance
Clamping Force
Power Specifications
| Parameter | Value |
|---|---|
| Power Supply | AC 110V/220V 50Hz |
| Motor Power | 1/4 HP |
Applications
Scope of Application
- Neon and resistor connections
- LED and wire connections
- Slide switch and wire connections
- High temperature heating elements
- Thermosensitive components (magnetic springs, fuses)
- Transformer tap and wire connections
Material Compatibility
Supported Wire Sizes
- Compatible Splice Band Sizes
- 2mm4mm6mm
Physical Characteristics
- Machine Weight
- 55 Kg
- Dimensions (LxWxH)
- 370 x 400 x 500 mm
Key Features
Operational Advantages
- Cold welding and air pollution prevention
- Continuous copper strip terminal feeding
- One-time quick pressing without waste
- Compatible with straight and curved mold bases
- High resistance to tension after riveting
- User-Friendly Design
- Yes
