18-Ton Underground Wheel Loader
This underground wheel loader has an 18-metric-ton payload capacity for heavy-duty material handling. It features articulated steering for optimal maneuverability in confined spaces.
Technical Specifications
Overview
High-Capacity Underground Loader

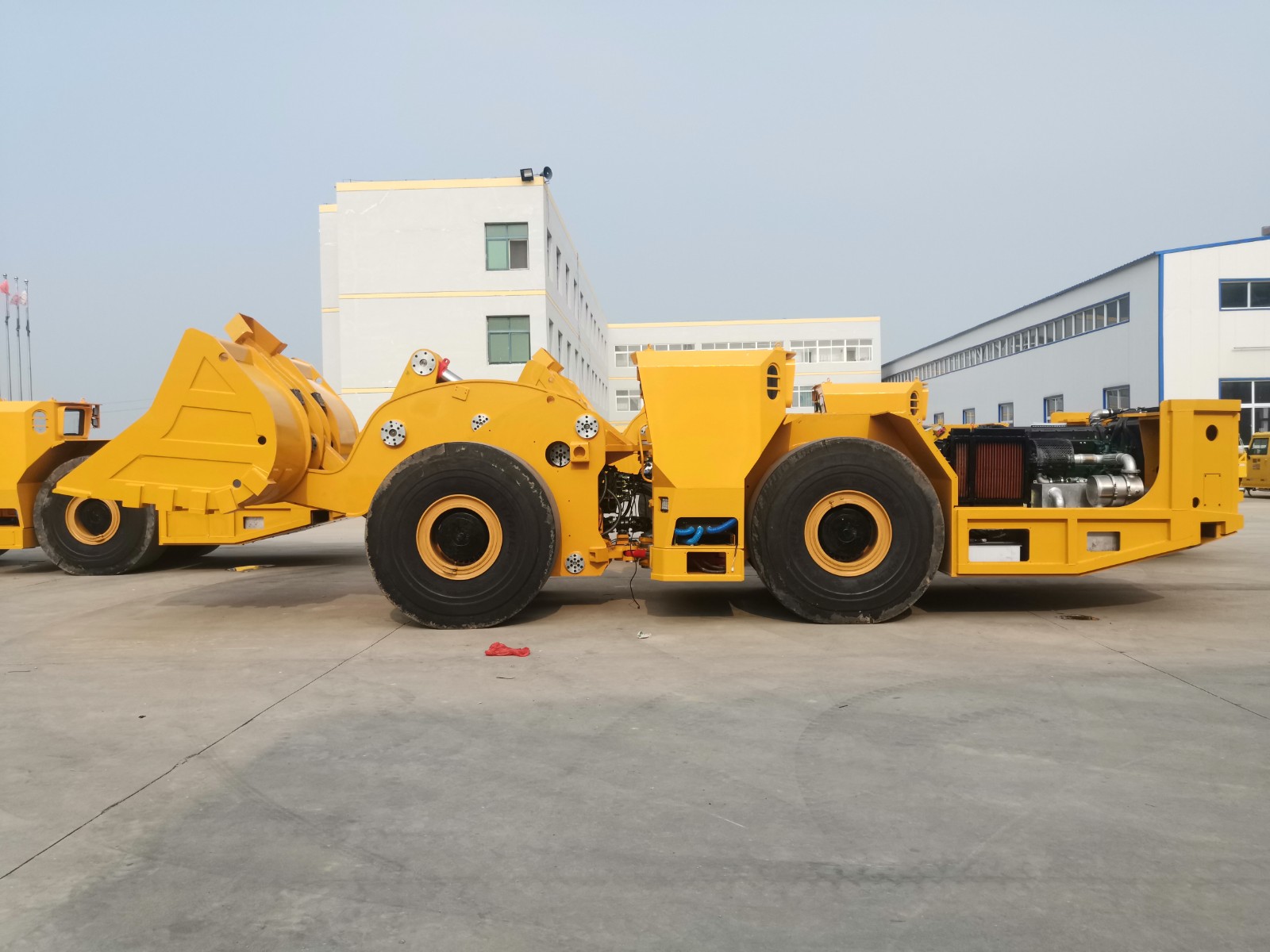

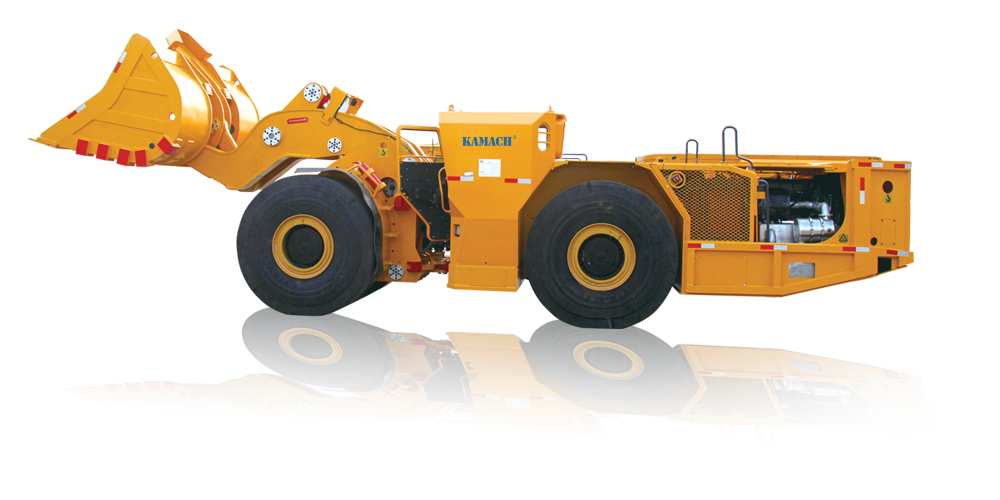

The WJ-7 is an 18-metric-ton diesel-powered underground wheel loader engineered for high-efficiency material handling in demanding tunnel environments. Featuring a 7m3 bucket capacity and advanced engine and hydraulic systems, this machine offers exceptional maneuverability and robust performance in spaces 4m x 4m or larger. Designed for reliability and productivity, it incorporates premium components to ensure minimal downtime and high operational availability.
Performance Metrics
Key Performance Metrics
18 Metric Ton
Loading Capacity
7 m3
Bucket Volume
350 kN
Max Shovel Force
Technical Specifications
Powertrain
| Component | Details |
|---|---|
| Engine Model | VOLVO PENTA TAD1352VE |
| Rated Power | 315 kW @ 1900 rpm |
| Transmission | Dana Spicer TE32 Electric |
| Drive Axle | KESSLER D111 |
Dimensions
- Length: 11,060 mm
- Width: 3,000 mm
- Height: 2,745 mm
- Dumping Height: 2,445 mm
Compliance & Features
Optional Upgrades
Sealed Cabin (AC/Heater)Automatic Central LubricationFire Suppression SystemRemote ControlTravel Aid System
- Certifications
- CEQS9001CA
