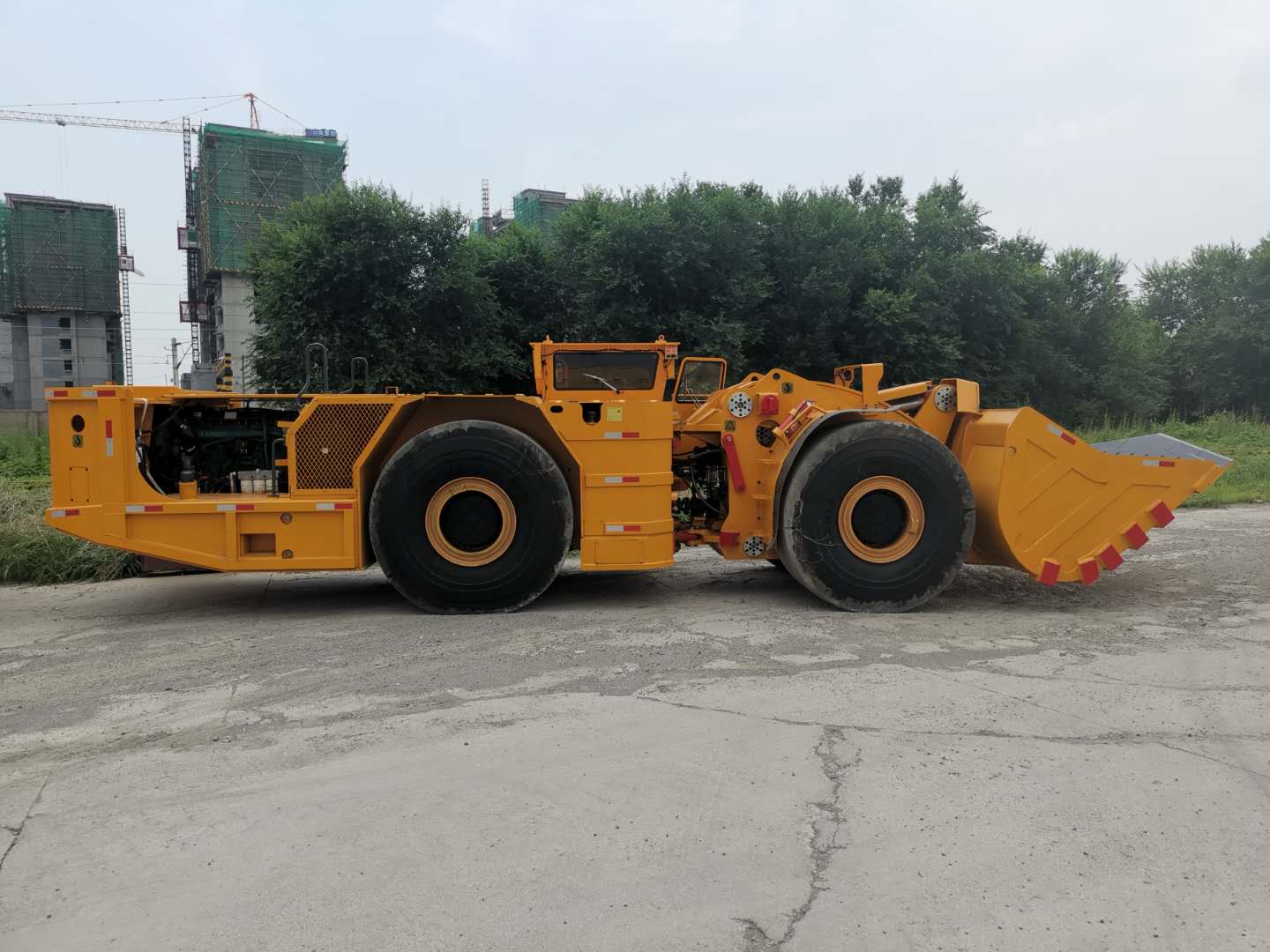

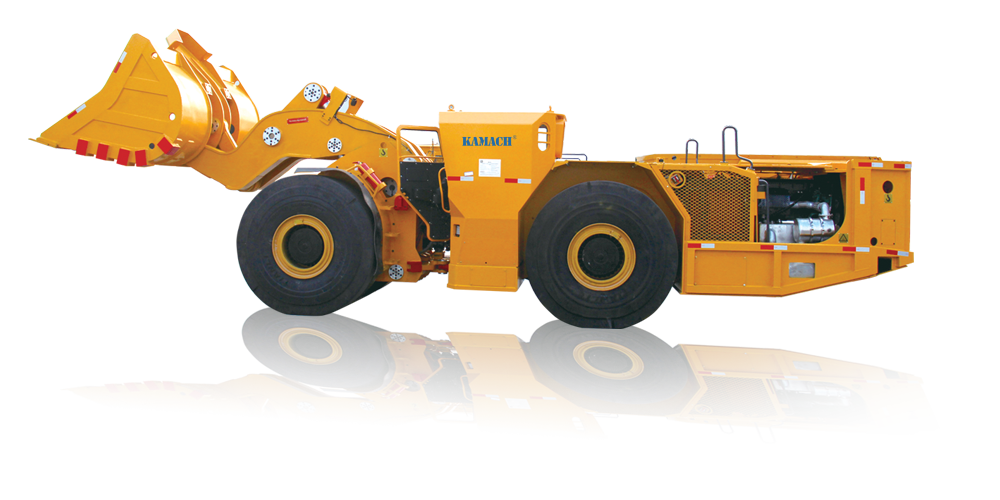

14-Metric Ton Underground Wheel Loader
This underground wheel loader has a 14-metric ton capacity. It is designed for heavy-duty performance in confined spaces.
Technical Specifications
Overview
High-Capacity Underground Performance
The WJ-6 underground wheel loader is a heavy-duty machine engineered for efficient material handling in mining tunnels measuring at least 3.5m by 3.5m. With a 14-metric ton loading capacity and a powerful 256 kW diesel engine, it delivers high performance in confined underground environments. The unit integrates premium international components to ensure reliability, ease of maintenance, and high operational uptime for demanding mining applications.
Key Performance Metrics
Performance Highlights
14 Metric Ton
Loading Capacity
6 m3
Bucket Volume
350 kN
Max Shovel Force
Technical Specifications
Machine Dimensions
| Dimension | Measurement |
|---|---|
| Length | 10,600 |
| Width | 2,866 |
| Height | 2,500 |
- Engine Power
- 256 kW
Certifications
- Certifications & Standards
- CEQS9001CA
Options
Available Upgrades
- Sealed cabin with heater and AC
- Automatic central lubrication
- Automatic & Manual fire suppression
- Radio & Video system
- Travel Aid system
- Remote control system
