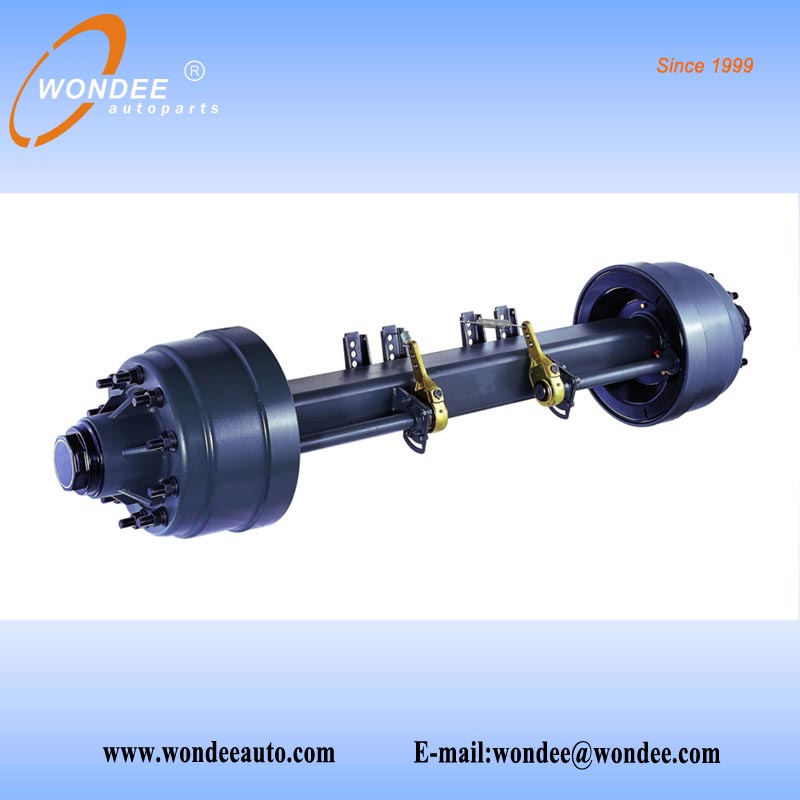

13-Ton Heavy-Duty Truck Axle
This 13-ton axle is a heavy-duty component designed for use in trucks and trailers. The axle is engineered to withstand substantial loads and provide reliable performance in demanding applications.
Technical Specifications
Overview
Heavy-Duty Performance
This 13-ton American-type axle is engineered for demanding heavy-duty truck and trailer applications. Featuring robust construction with spinning forming and intermediate frequency quenching, it delivers superior load capacity and extended service life. The design prioritizes reliability with precision machining and high-quality components, ensuring stability and safety under various operating conditions.
Technical Specifications
- Beam Capacity
- 13 Ton
- Beam Dimensions
- 150 x 150 x 12 mm (Square)
- Track Length
- 1840 mm
Braking System
- Brake Size
- 420 x 180 mm
- Slack Adjuster
- Manual (10 teeth & 3 holes)
Components & Maintenance
Maintenance Intervals
100,000 km
Brake Shoe Service Life
100,000 km
Axle Tube Warranty
- Bearing Model
- 518445/10
- Grease Type
- Mobil
Manufacturing Quality
- Quality Standards
- Electrophoretic PaintingPrecision MachiningSpinning FormingIntermediate Frequency Quenching
