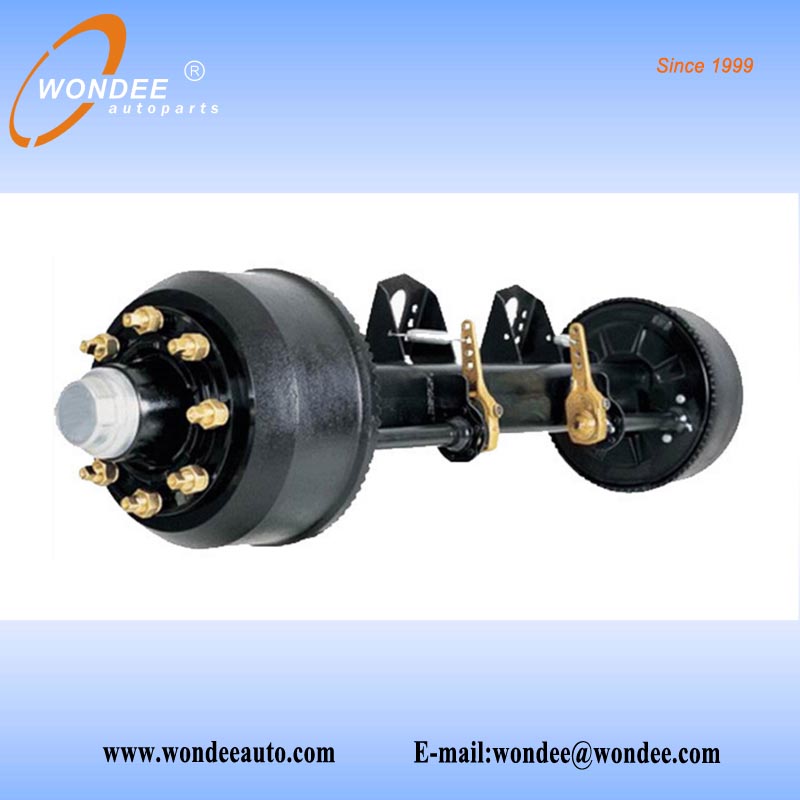

12-Ton Heavy-Duty Truck Axle
This 12-ton capacity axle is designed for heavy-duty applications. It features robust construction and precision engineering for reliable performance and durability.
Technical Specifications
Product Overview
Heavy-Duty Engineering
This Germany-type heavy-duty axle is designed for demanding commercial applications, offering a robust 12-ton load capacity. Built with precision-machined components and advanced spinning forming technology, it ensures superior durability and reliable performance under heavy loads. The axle features an environmentally friendly electrophoretic painting process and utilizes globally compatible parts for easier, more economical maintenance.
Technical Specifications
Beam Capacity
12 Ton
Capacity
- Beam Size
- 150 x 150 x 12 mm
- Track Length
- 1840 mm
Braking System
- Brake Dimensions
- 420 x 180 mm
- Drum Type
- In-board
- Slack Adjuster
- Manual, 28 teeth, 5 holes
Components & Bearings
- Outer Bearing
- 33213
- Inner Bearing
- 33118
- Bearing Grease
- Mobil
Performance & Warranty
Warranty Coverage
- 15-month axle tube warranty
- 100,000–150,000 km warranty range
Manufacturing Standards
Spinning formingIntermediate frequency quenchingPrecision machining (<0.015mm)Electrophoretic painting
- Expected Service Life
- Brake shoe: 100k-150k km
