12-Ton Diesel Forklift Truck

This heavy-duty 12-ton diesel forklift truck is designed for demanding material handling applications. It features a robust chassis and a powerful diesel engine.

Request a Quote Download PDFPDF

12 Ton Diesel Heavy Forklift Truck - Image 1

Technical Specifications

Overview

Heavy-Duty 12-Ton Diesel Forklift

This 12-ton diesel forklift is engineered for demanding industrial applications, featuring a high-quality turbocharged engine that balances strong power with energy conservation. The robust box-type frame and 3D finite element analysis ensure superior structural stability for heavy-duty lifting in ports, construction sites, and warehouses. Designed with operator efficiency in mind, it includes a full-hydraulic steering system and a pilot valve control device to reduce labor intensity during long shifts.

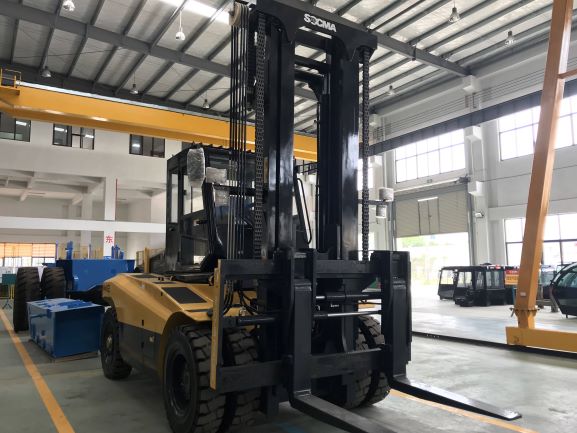

12-ton diesel forklift in operation — The 12-ton diesel forklift is designed for high-capacity material handling in ports and industrial sites.

Key Performance Metrics

Performance Highlights

12 t

Rated Load

3,000 mm

Lifting Height

23 km/h

Travel Speed (Loaded)

18,000 kg

Service Weight

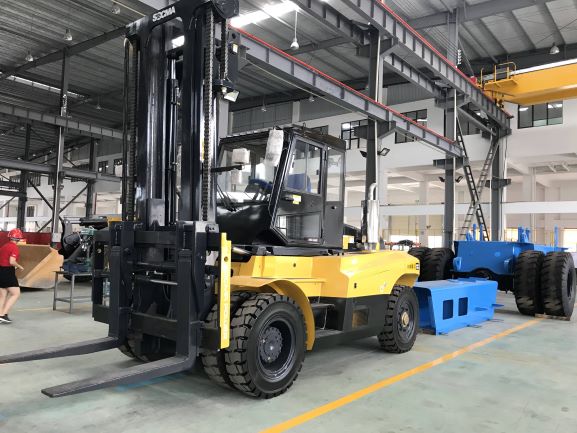

Side view of heavy-duty forklift — Robust chassis construction and durable lifting system ensure stability under maximum load.

Engine & Transmission

Engine Specifications

Feature	Option 1	Option 2
Engine Power	110KW @ 2200rpm	97KW @ 2200rpm
Displacement	6.494L	4.5L
Cylinders	6	4

Chassis & Steering

Steering & Braking

Full-hydraulic transverse oil cylinder steering
Hydraulic clamp disc braking system
Independent transmission and hydraulic oil cooling
Box-type firm frame structure
Imported technology torque converter

Dimensions

Physical Dimensions

Parameter	Value
Overall Length (with forks)	6055 mm
Overall Width	2250 mm
Wheelbase	3000 mm
Min. Turning Radius	4450 mm
Fork Dimensions	1200 x 180 x 90 mm

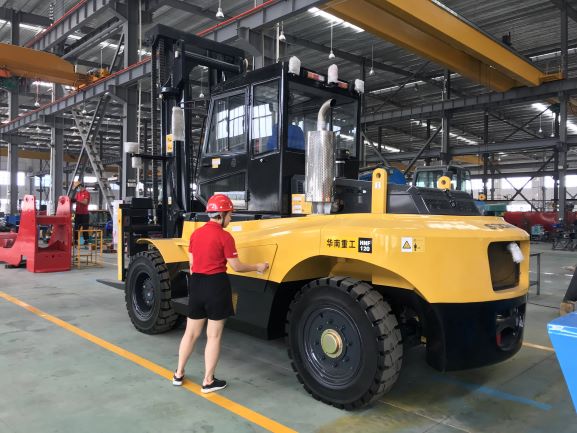

Forklift front view with telescopic mast — Equipped with a telescopic mast and hydraulic fork positioner for precise load placement.

Operator Comfort

Cabin Features: Full CabAir ConditioningHeaterRear View DisplayPilot Valve ControlHydraulic Fork Positioner

Forklift exterior view — Ergonomic operator cabin featuring advanced safety controls and high visibility.

Service & Warranty

After-Sales Support

12-month or 2000-hour warranty period
Global spare parts delivery network
On-site installation and maintenance testing reports
Operator and technical maintenance training
Technical advisory for prolonged machine life

Compliance

Certifications

ISO 9001:2015CE CertifiedSpecial Equipment License
