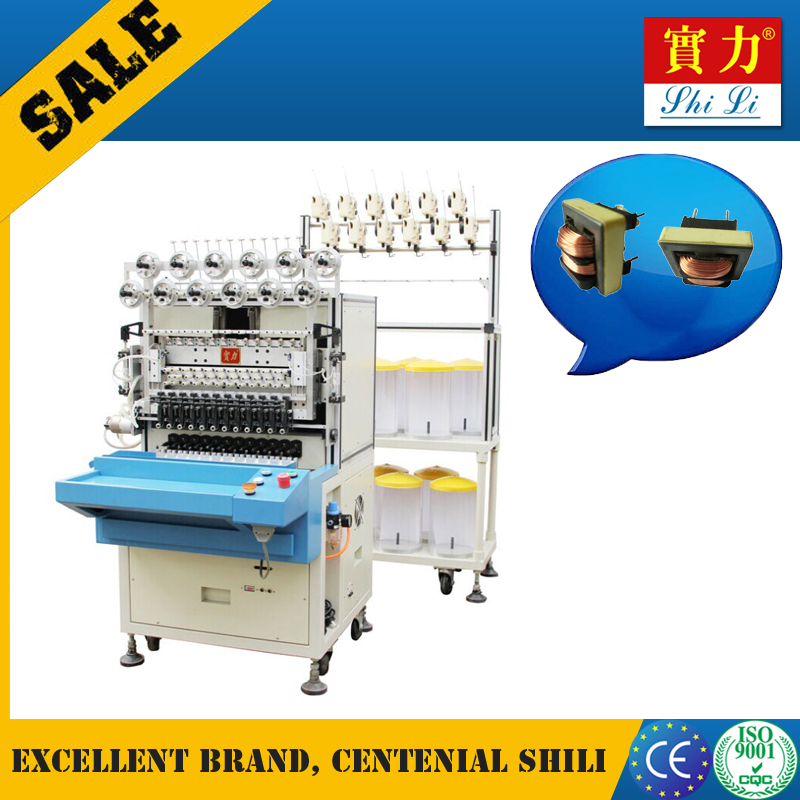

12 Spindle Automatic Coil Taping and Winding Machine
This machine integrates automatic winding and taping for efficient coil production. It features a user-friendly touch screen interface and imported components for stable, reliable, and precise operation.
Technical Specifications
Product Overview
High-Efficiency Coil Manufacturing
The 12-spindle automatic taping and winding machine is engineered for high-volume, precise production of various coil components. By integrating automated winding and taping processes into a single system, it significantly enhances production efficiency and reduces labor costs. The machine features advanced tension control and programmable winding angles to ensure consistent, high-quality results across diverse manufacturing applications.
Key Features
Core Features
- Unique winding fixture design for rapid setup
- Programmable winding angles from 0-180°
- Precision tension wire frame control
- Automatic cable management with no gripper line residue
- High-precision magnetic tension device for wire conservation
Technical Specifications
Integrated Components
| Component | Origin |
|---|---|
| Control System | Taiwan |
| AC Servo Motors | Taiwan |
| Cylinders | Japan (SMC) |
| Bearings | Japan (NTN) |
| Belt | Japan (BANDO) |
| Ball Screw/Guide Rail | Taiwan (TBI) |
- Spindle Count
- 12
Applications
- Compatible Products
- Cell phone charger transformersWatch coilsHigh-frequency transformersSolenoidsEE transformersEI transformersStepping motorsRelaysAuto ABSSwitch power transformers
Compliance
Certifications
CEISO 9001
