Technical Specifications
Product Overview
Smart Constant Temperature Heating

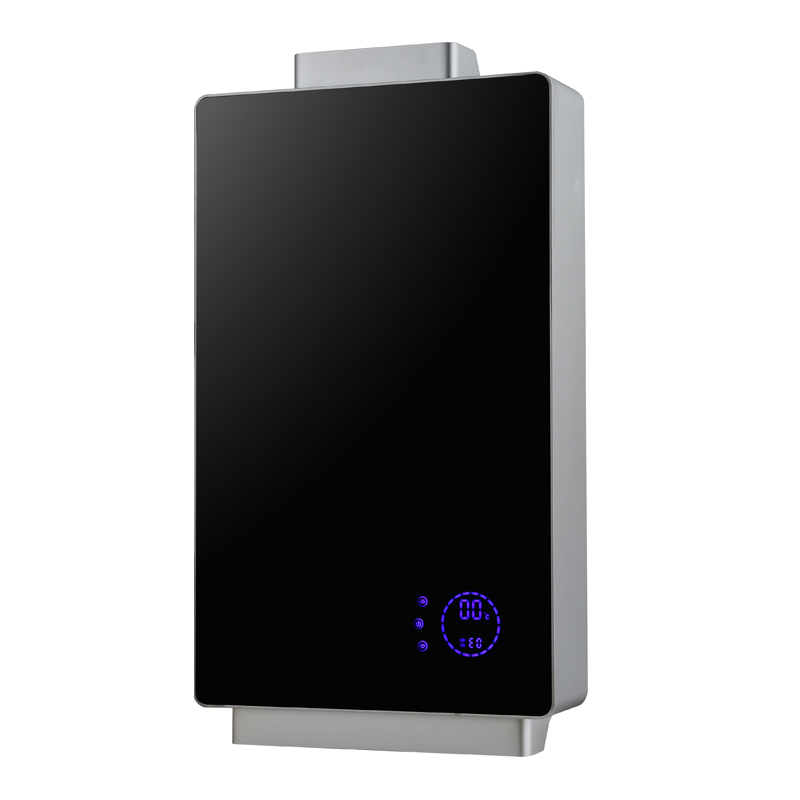

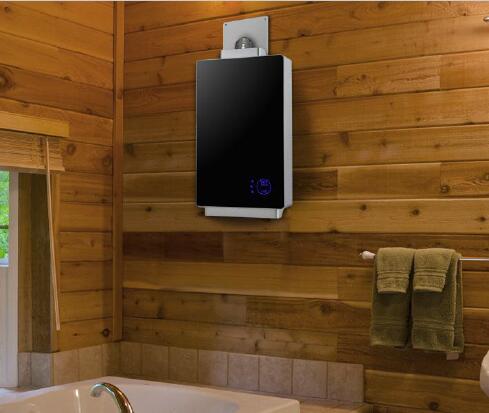

This 10L digital constant temperature gas water heater is engineered to deliver reliable, on-demand hot water with precise temperature stability. Featuring a sleek, modern design with a glass front panel and intuitive digital controls, it ensures a consistent and comfortable water supply for residential use. The unit incorporates essential safety features, including flame failure detection and overheat protection, while maintaining energy-efficient operation.
Performance Specifications
Rated Heat Loading
Hot Water Capacity
Rated Gas Pressure Requirements
| Gas Type | Pressure |
|---|---|
| LPG | 280 Pa |
| NG | 2000 Pa |
| TG | 1000 Pa |
- Supported Gas Types
- LPGNGTG
Installation & Dimensions
- Model Number
- JSQ20-10HB
- Flue Pipe Diameter
- 60 mm
- Applicable Water Pressure
- 0.02MPa - 0.8MPa
- Product Dimensions
- 578 x 368 x 122 mm
