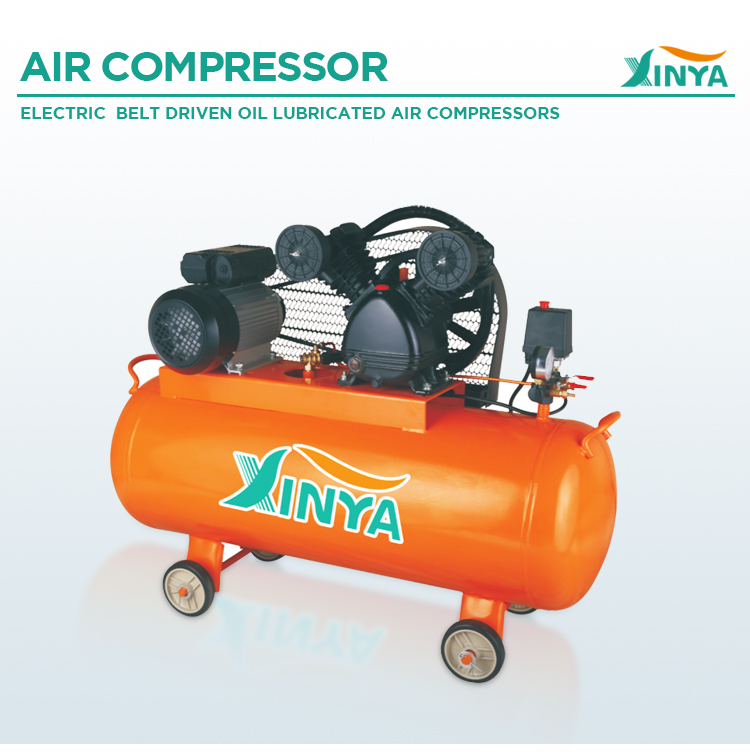

100L Oil Lubricated Belt-Driven Air Compressor
This oil-lubricated air compressor features a belt-driven mechanism and a 100L tank. It provides compressed air for a variety of pneumatic tools and applications.
Technical Specifications
Product Overview
Industrial-Grade Performance
This belt-driven oil-lubricated air compressor is engineered for reliability and high-volume demand in professional settings. Featuring a robust 100-liter tank, it ensures consistent air supply for pneumatic tools, spray painting, and heavy-duty workshop tasks. The oil-lubricated piston system minimizes wear to extend equipment lifespan, while the efficient belt-drive design provides stable power delivery and reduced operational noise.
Technical Specifications
Motor Power
2.2 KW
Motor
3 HP
Horsepower
Electrical Requirements
- Voltage: 220V
- Frequency: 50Hz
- Model Number
- XY2065A-100
Performance Metrics
- Max Air Flow
- 336 L/min
- Maximum Pressure
- 8 bar (115 psi)
- Rotational Speed
- 1100 r.p.m
Design and Construction
- Tank Capacity
- 100 L

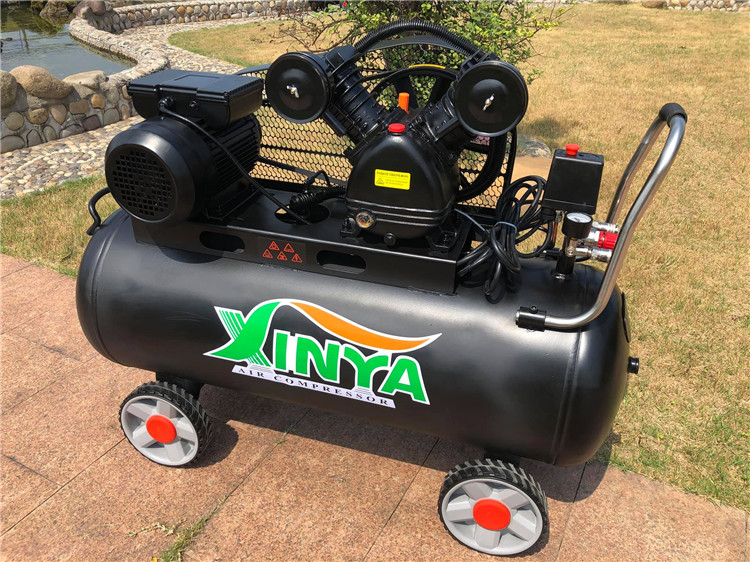

- Cylinder Configuration
- 65mm x 2 Cylinders
- Build Features
- Oil-lubricatedBelt-drivenPlastic-coated tankPortable (wheels)Closed belt guard

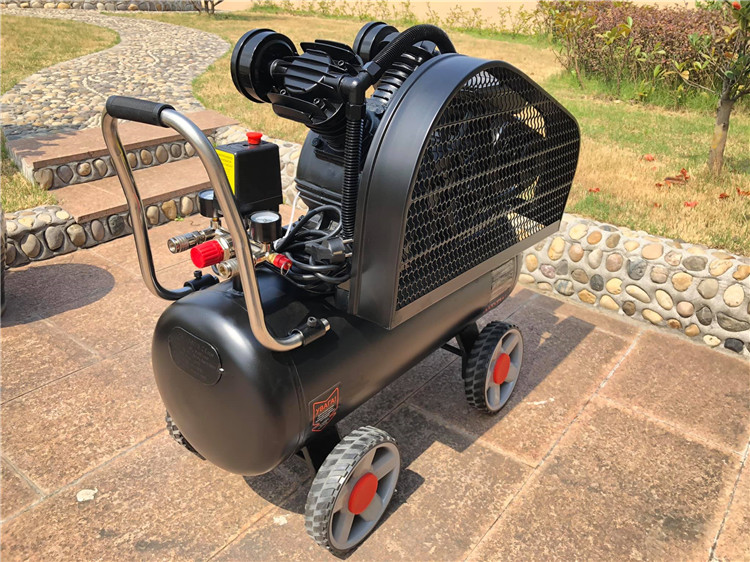

Operational Controls
System Controls
- Pressure switch with adjustable cut-in/cut-off
- Integrated pressure regulator with gauge
- Quick-connector output
- Easy-open drain valve
- Motor circuit breaker protection
