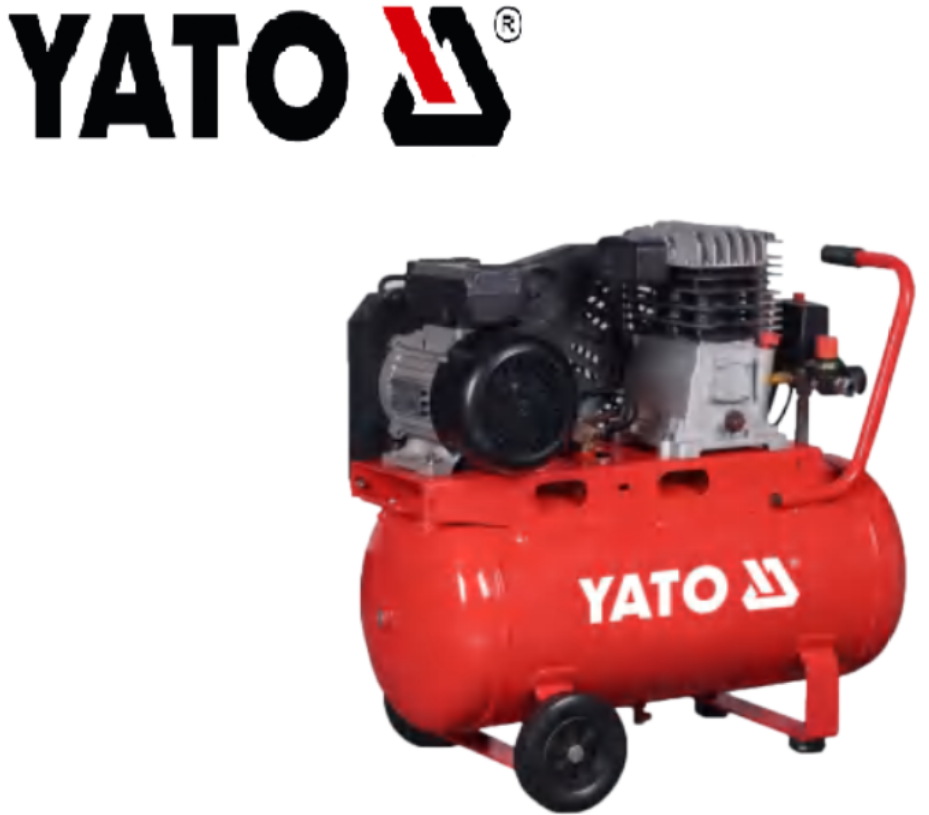

100L Belt-Driven Air Compressor for Heavy-Duty Applications
This belt-driven air compressor is designed for professional and heavy-duty applications. With a 100-liter tank capacity, it provides ample air supply for various pneumatic tools and equipment.
Technical Specifications
Overview
Heavy-Duty Belt-Driven Performance
This 100L belt-driven air compressor is engineered for demanding professional and industrial environments. Featuring a robust cast-iron cylinder construction and a high-efficiency belt-drive mechanism, it delivers consistent power for pneumatic tools and workshop operations. With a 100-liter capacity and rapid refill times, it provides a reliable air source for garages and industrial settings requiring sustained performance.
Technical Specifications
- Rated Voltage
- 220-240V~ 50Hz
- Input Power
- 2.2 kW
- Rated Speed
- 1100 rpm
Performance Metrics
Key Performance Metrics
100 L
Tank Volume
8 bar
Max Pressure
199 L/min
Air Delivery
- Gas-filled Time
- 290 s
Construction & Design
Cylinder Configuration
| Metric | Value |
|---|---|
| Material | Cast Iron |
| Quantity | 2 |
| Diameter | 55mm |
| Stroke | 38mm |
- Tank Dimensions (D*L*T)
- 350mm * 835mm * 3.0mm
Components & Accessories
Included Components
- 1x Pressure Regulator (0-8 Bar)
- 2x Quick Couplers
- 2x Pressure Gauges
- 1x Check Valve
