Technical Specifications
Overview

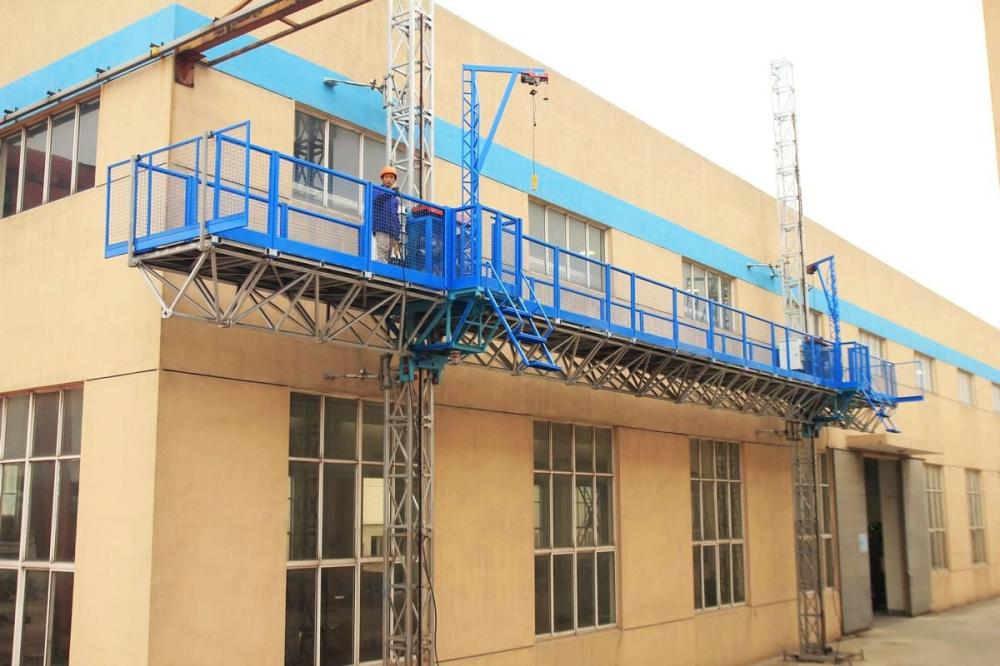

Professional Climbing Work Platform
This Single Mast Climbing Work Platform is a versatile and robust solution designed for construction, maintenance, and inspection tasks at height. With a maximum working height of 100 meters and a 1000 kg rated capacity, it provides a safe, efficient, and stable environment for workers and equipment. The modular design allows for easy site changes without the need for a foundation, making it an essential piece of equipment for modern construction sites.
Performance Specifications
- Rated Capacity
- 1000 kg
- Max. Working Height
- 100 m
- Rated Lifting Speed
- 8.3 m/min
- Max. Height of Stand-alone Installation
- 7.5 m
Platform Dimensions
Platform Width
- Basic: 1.5 m
- Maximum: 2.5 m
- Platform Length
- 8.67 m
Technical Details
- Standard Section Dimensions
- 1508 × 500 × 500 mm
Motor & Electrical
- Motor Type
- YZZ 132 S1-4
- Motor Power
- 5.5 kW
- Rated Rotation Speed
- 1400 r/min
- Rated Current
- 13.5 A
Brake System
- Brake Torque
- 100 N.m
