10-Ton Underground Wheel Loader
This underground wheel loader has a 10-metric ton capacity for loading and transporting materials. It is designed for heavy-duty performance in confined underground spaces.
Technical Specifications
Product Overview
High-Capacity Underground Mining Performance

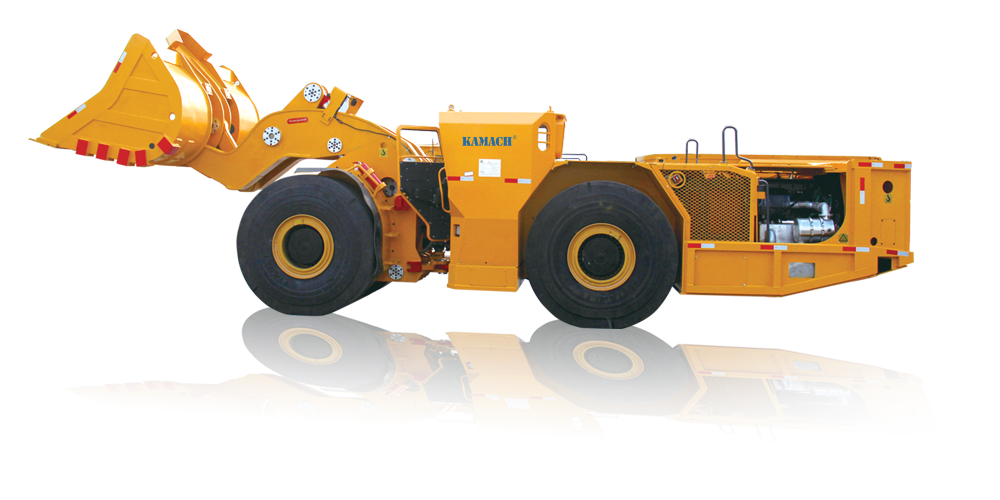

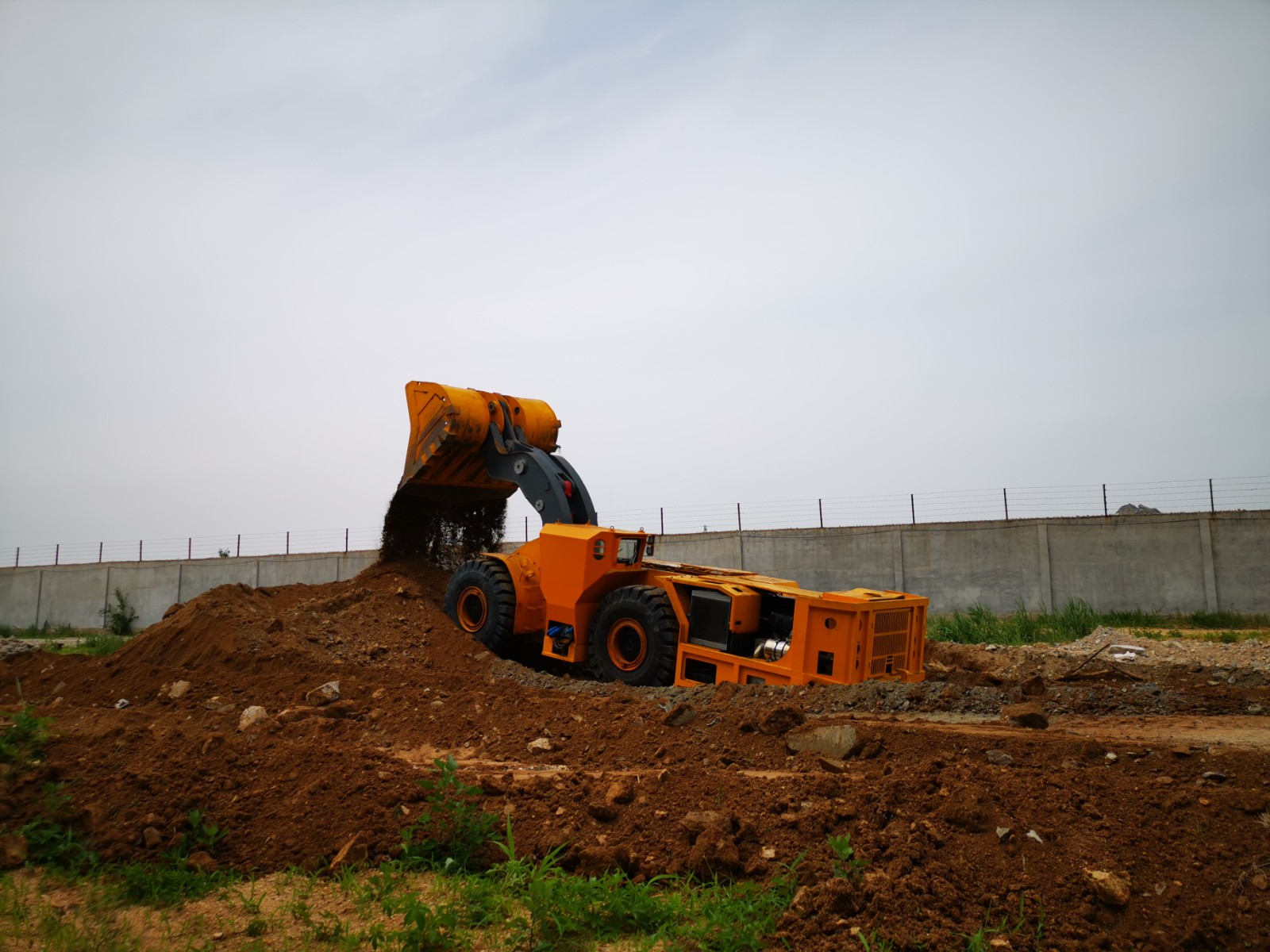

The WJ-4 is a robust underground wheel loader engineered for efficient material handling in mining and tunneling operations. Featuring a 10-metric ton load capacity and a powerful diesel powertrain, this machine provides the reliability needed for demanding environments. Its compact design and articulated steering ensure exceptional maneuverability within tunnel sections of 3.5m x 3.5m or greater.
Performance Metrics
Key Operational Metrics
10,000 kg
Max Loading Capacity
4 m3
Bucket Volume
2,010 mm
Max Dumping Height
227 kN
Max Shovel Force
Technical Specifications
Engine and Drive
| Component | Detail |
|---|---|
| Method | Diesel |
| Engine Model | VOLVO |
| Rated Power | 235 kW / 2200 rpm |
| Transmission | 36000/DANA |
| Drive Axle | 20D/DANA / D102/KESSLER |
Traveling Speed (km/h)
- 4
- 8.3
- 15.4
- 25
Machine Dimensions
- Length: 9600mm
- Width: 2600mm
- Height: 2450mm
Compliance & Quality
- Certifications
- CECAQS9001
Options
Available Upgrades
Sealed CabinFire Suppression SystemRemote ControlCentral LubricationTravel Aid System
