1-20 kVA Online UPS Power Supply with LCD
This online UPS power supply utilizes double conversion technology to eliminate power grid issues. It supports tower installation and has a built-in battery.
Technical Specifications
Product Overview

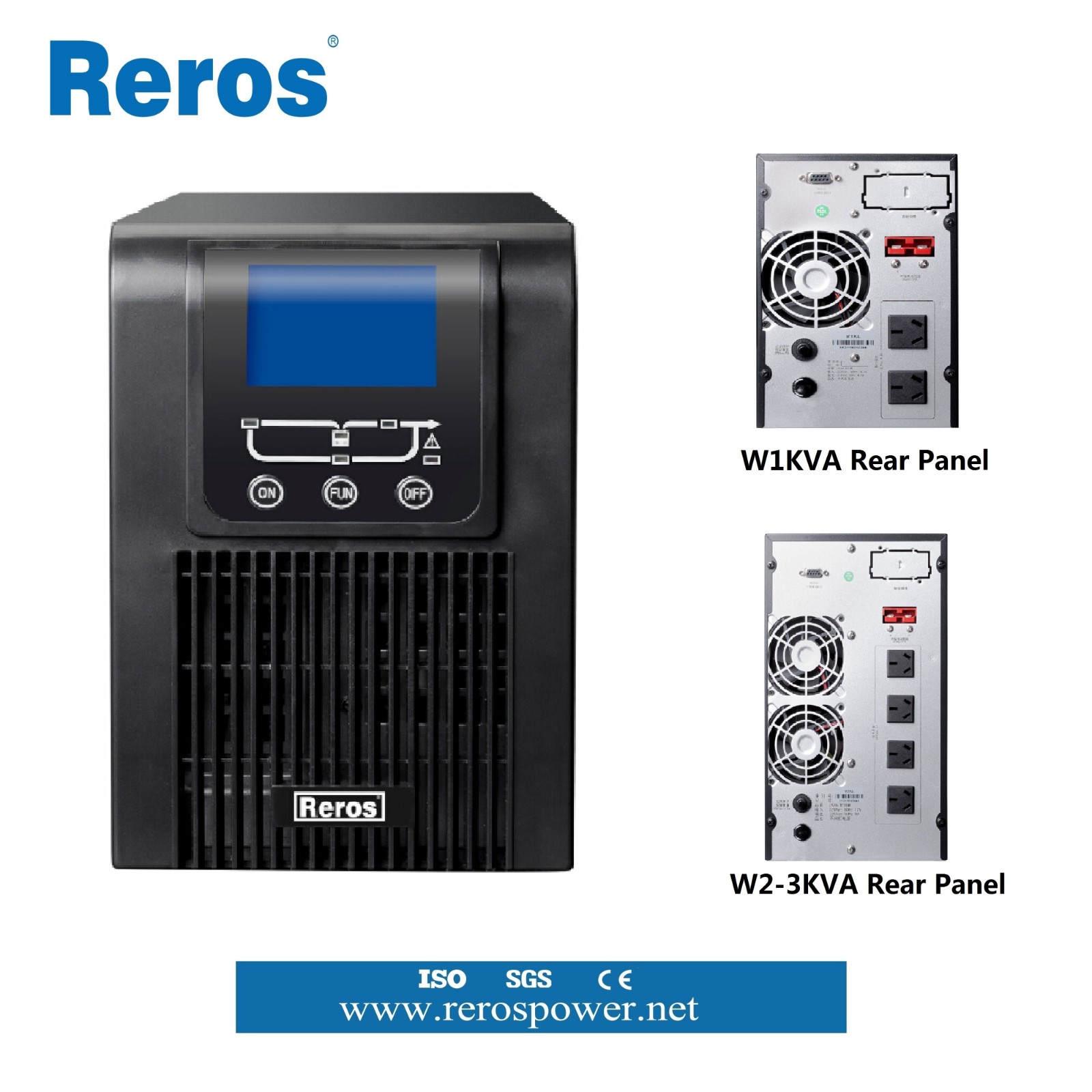

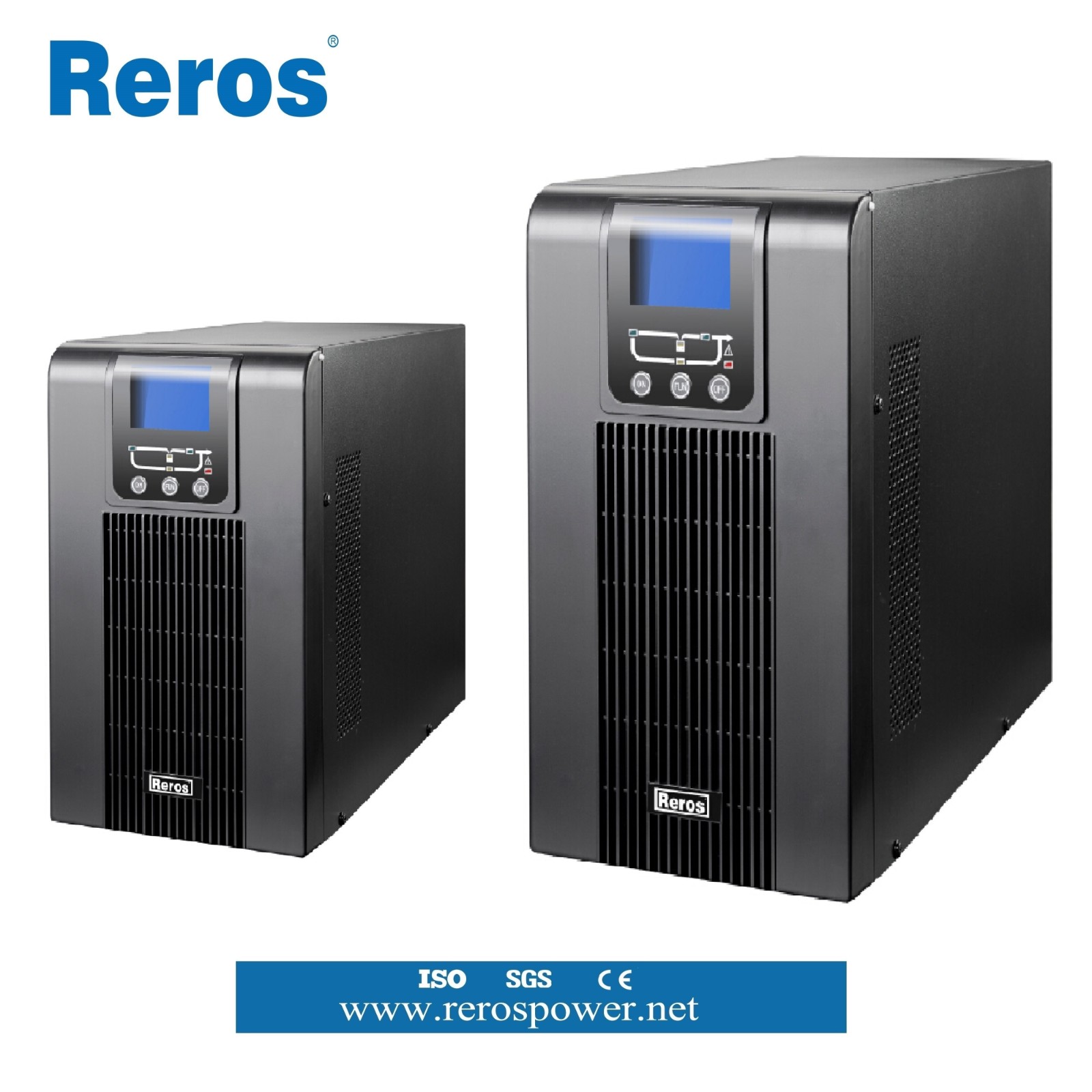

High-Performance Online UPS
This high-frequency double conversion online UPS is engineered for small-capacity power supply scenarios, utilizing advanced DSP digital control technology. It effectively eliminates power grid irregularities to provide clean, stable electricity for critical equipment. With a compact tower design and built-in battery options, it serves as an ideal power protection solution for data centers, network devices, commercial facilities, and precision instruments.
Key Features
Key Features
- Full digital control technology
- Output power factor up to 1.0
- LCD display panel for real-time monitoring
- High power density design
- AC/AC efficiency up to 95%
- ECO mode function
- Connectivity
- RS232SNMP (Optional)USB (Optional)EPO (Optional)Dry Contact (Optional)
Technical Specifications
Capacity Range
1 kVA
Minimum Capacity
20 kVA
Maximum Capacity
Input Specifications
| Parameter | Value |
|---|---|
| Input Voltage Range | 120-300VAC (1/1) / 266-475VAC (3/1) |
| Frequency Range | 45-66 Hz |
| Input Power Factor | Full load ≥0.95 |
Applications
Suitable Applications
Data CentersNetwork DevicesCommercial FacilitiesPrecision InstrumentsOffice Equipment
