0.8 Ton Mini Excavator
This compact mini excavator is designed for agricultural and small-scale construction tasks. With an operating weight of 0.8 tons, it offers a balance of power and maneuverability.
Technical Specifications
Overview
Compact and Efficient Mini Excavator
This 0.8-ton mini excavator is engineered for high efficiency in agricultural and small-scale construction environments. Its compact design allows for flexible operation in confined spaces, while the integration of imported hydraulic components ensures stable performance and a low failure rate. Designed for versatility, it offers reduced fuel consumption without compromising on digging power.
Key Performance Metrics
Performance Highlights
0.8 Tons
Operating Weight
1,480 mm
Max Digging Depth
2,685 mm
Max Digging Height
0.025 m³
Bucket Capacity
Technical Specifications
Detailed Dimensions & Capacity
| Parameter | Value |
|---|---|
| Operating Weight | 700 KG |
| Bucket Width | 320 mm |
| Boom Length | 1350 mm |
| Stick Length | 700 mm |
| Max Digging Radius | 2612 mm |
| Max Unloading Height | 1850 mm |
| Bulldozer Width x Height | 900 x 210 mm |

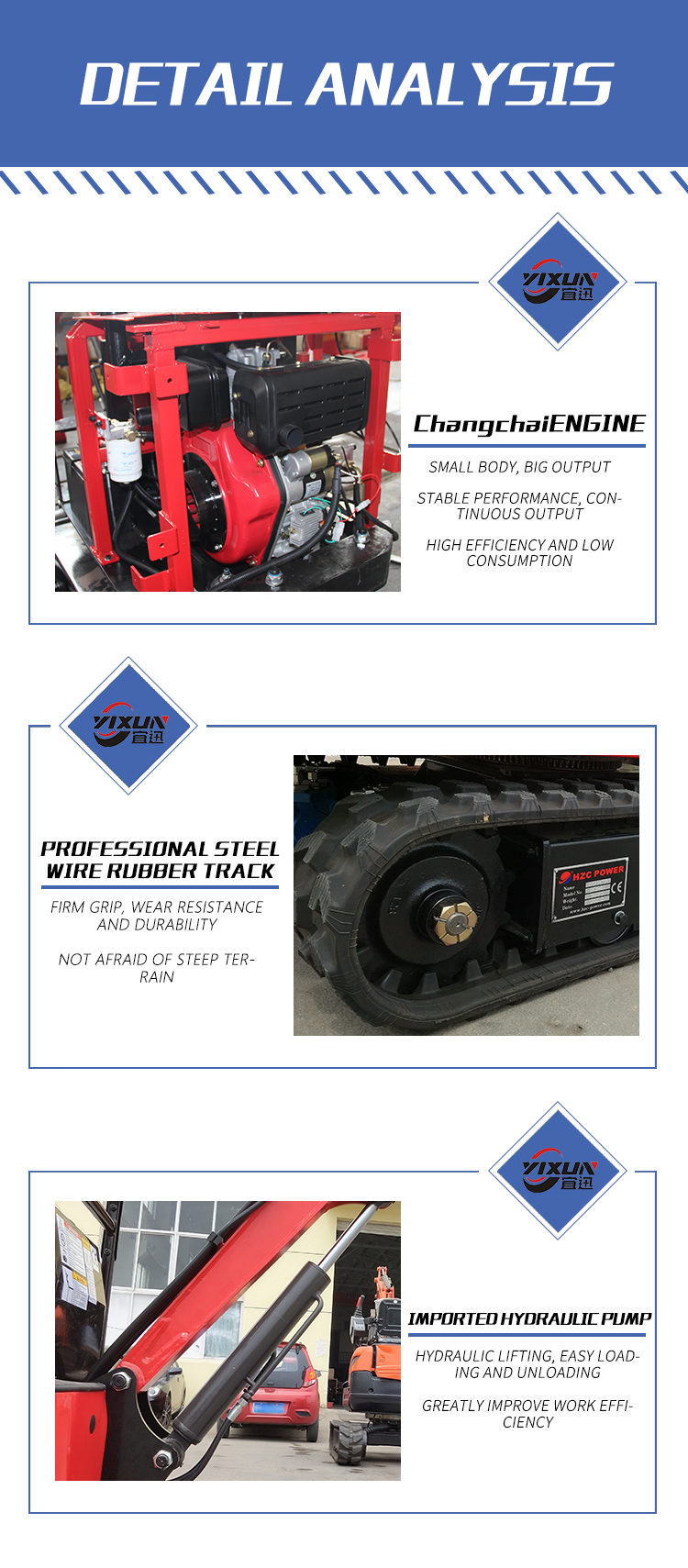

Core Components
Hydraulic System
- Imported Hydraulic Pump
- Eaton Motor
- Shimadzu Hydraulic System
- Hydraulic Lifting Capability
- Engine Options
- High Output EngineStable PerformanceLow Fuel Consumption
Chassis & Mobility
Terrain Capability
Steep Terrain ReadyDurableHigh Grip
- Track System
- Professional steel wire rubber tracks for firm grip and wear resistance
Design Features
Key Advantages
- Inner tank type structure for easy maintenance
- Simple installation process
- Small and exquisite body for flexible operation
- High utilization rate across wide environments
