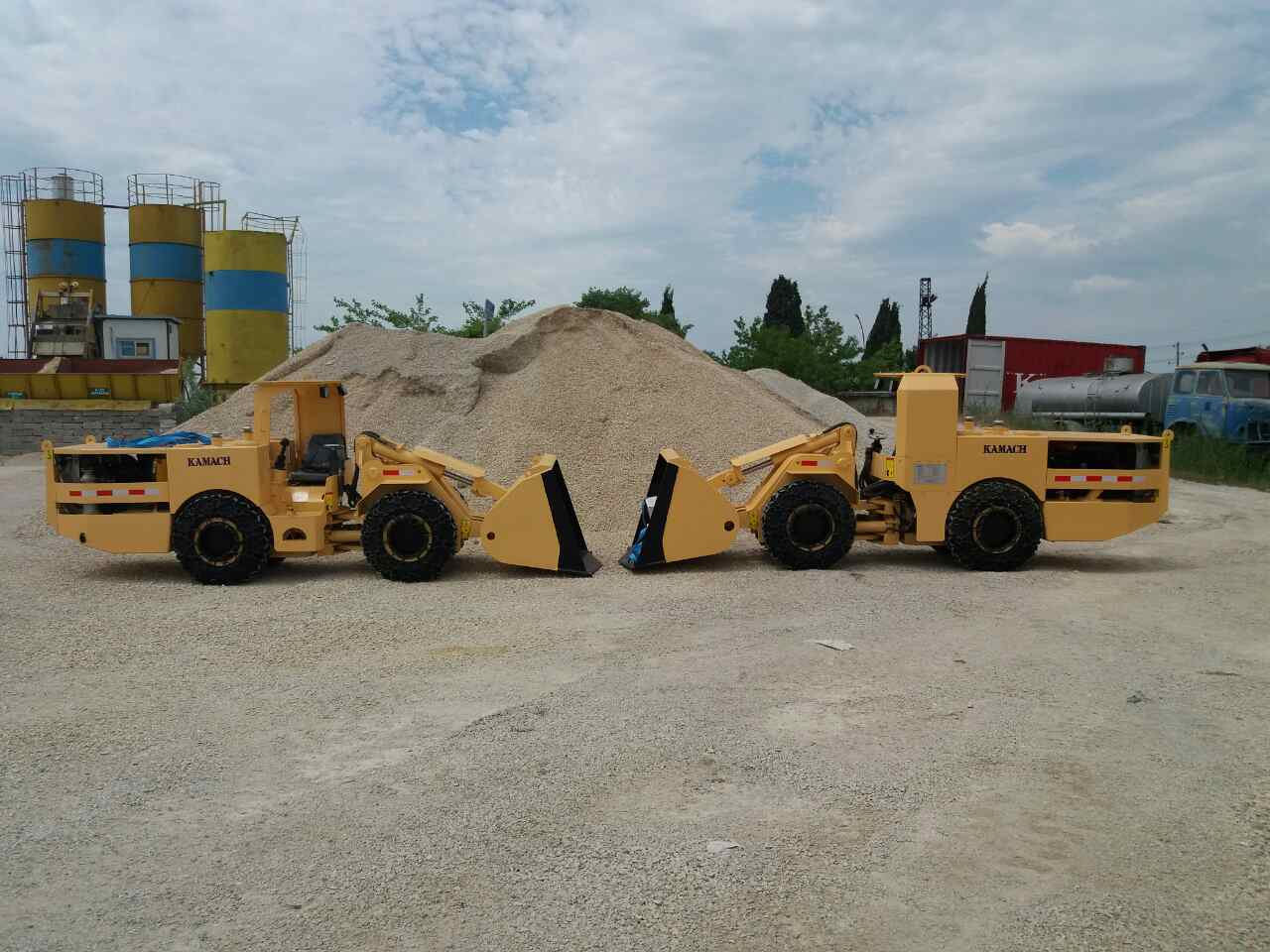

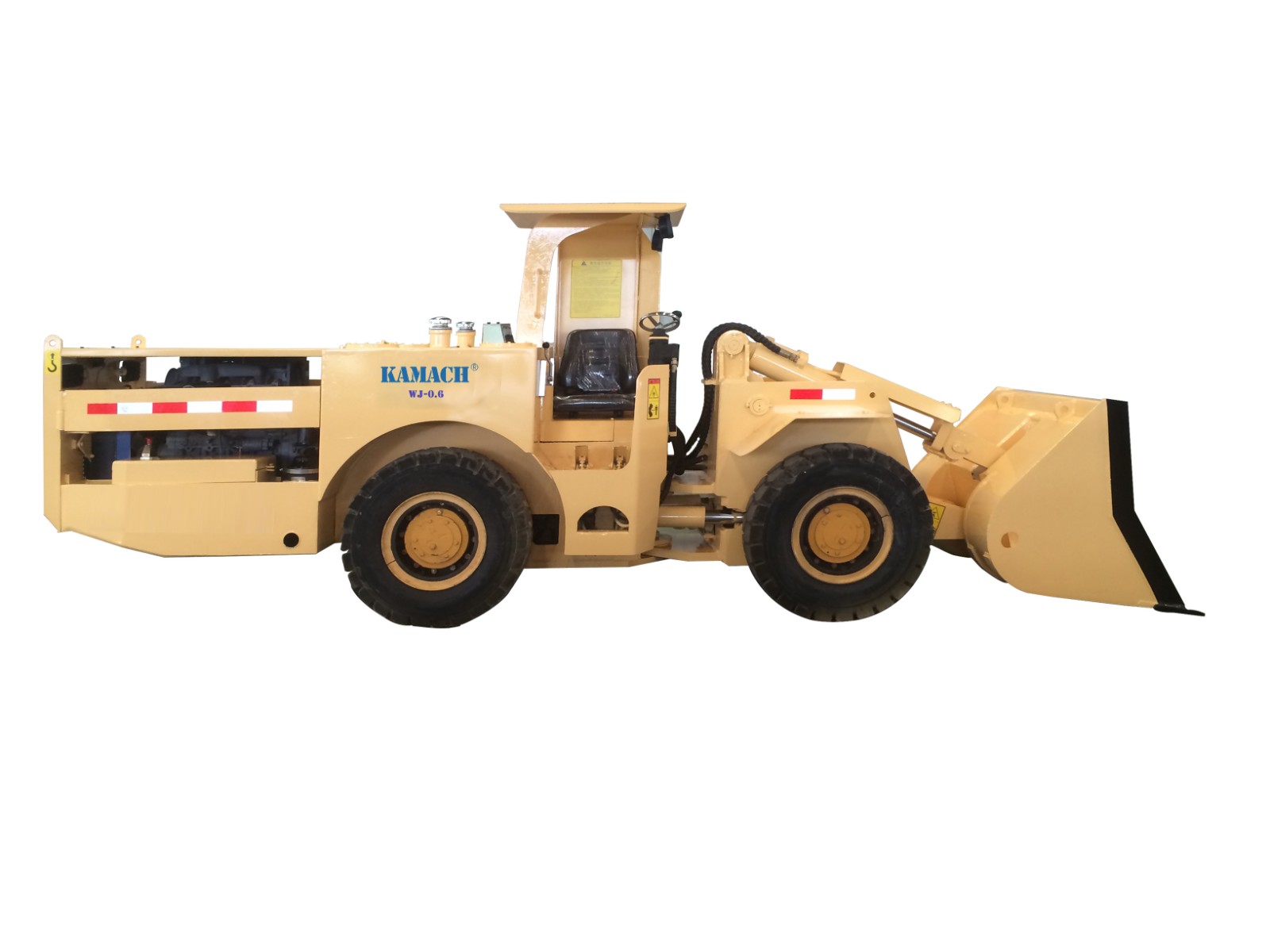

0.6 cu.m Underground Wheel Loader
This underground wheel loader has a 0.6 cubic meter bucket and a 1.2-ton loading capacity. Its articulated steering system provides maneuverability in confined spaces.
Technical Specifications
Product Overview
Compact Underground Power
The 0.6 cu.m underground wheel loader is specifically engineered for high-performance operation in narrow tunnels and confined mining environments. Combining a robust 1.2-ton loading capacity with an articulated design, it provides exceptional maneuverability without sacrificing power. Built for longevity and reliability, this machine utilizes premium engine and hydraulic components to ensure consistent productivity in demanding underground conditions.
Key Performance Metrics
Operating Capacity
0.6 m3
Bucket Volume
1.2 ton
Loading Capacity
42 kN
Max Shovel Force
Technical Specifications
Mechanical Data
| Feature | Specification |
|---|---|
| Engine Power | 47.5 kW |
| Operating Mass | 5000 kg |
| Turning Radius (Inner) | 1780 mm |
| Offload Height | 1015 mm |
Compliance and Quality
- Industry Certifications
- CEQS9001Mining Certificate
Maintenance and Logistics
Shipping Information
- Packaging: 20’ GP container
- Production lead-time: 15-35 days
- Parts delivered with machine to site
