Hydraulic Accumulator Charging Valve
This power brake valve system provides high operation safety with minimal operating force. It is suitable for use in construction equipment, material handling vehicles, forestry and agricultural machines, and other mobile working machinery.
Technical Specifications
Overview
High-Performance Power Brake Valve System
The GLT05 accumulator charging valve is a critical component for power brake systems, offering high operational safety with low operating force. Designed for heavy-duty mobile machinery, it ensures efficient energy storage and precise pressure control to prevent overcharging. This highly integrated valve is engineered for quick installation and reliable performance in demanding industrial environments.
Technical Performance
Key Performance Metrics
25 MPa
Rated Pressure
70 L/min
System Flow
20 MPa
Accumulator Circuit Pressure
- Liquid Filling Flow
- 6-17 L/min
Operating Conditions
- Hydraulic Oil Type
- Mineral oil (HL, HLP) in accordance with DIN 51 524
- Fluid Temperature Range
- -20°C to 100°C
- Viscosity Range
- 10 to 380 mm²/s
- Fluid Cleanliness Standard
- GB/T 14039-2002 level 18/15NAS 1638 level 9

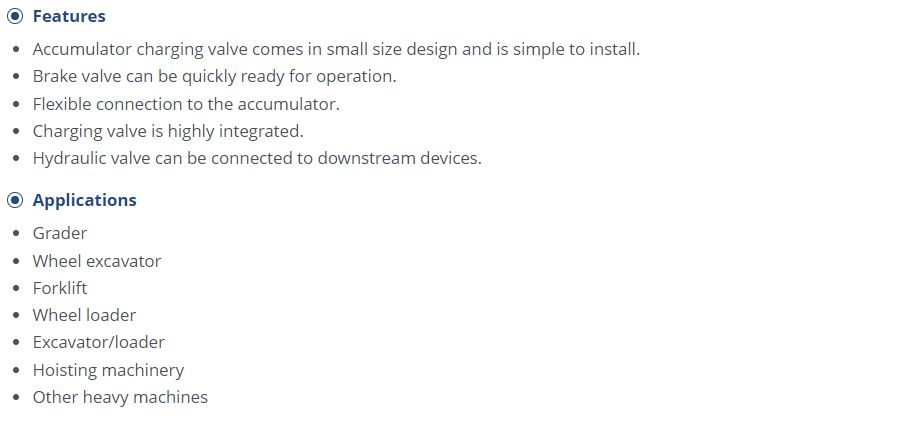

Design Features
Core Features
- Compact small-size design for easy installation
- Rapid readiness for brake system operation
- Flexible accumulator connection options
- High system integration
- Connectivity for downstream hydraulic devices
Applications
Suitable Machinery
GraderWheel ExcavatorForkliftWheel LoaderExcavator/LoaderHoisting MachineryConstruction EquipmentAgricultural Machines
Physical Specifications
- Weight
- 3.5 kg
